LED industrial lightsLED industrial lights

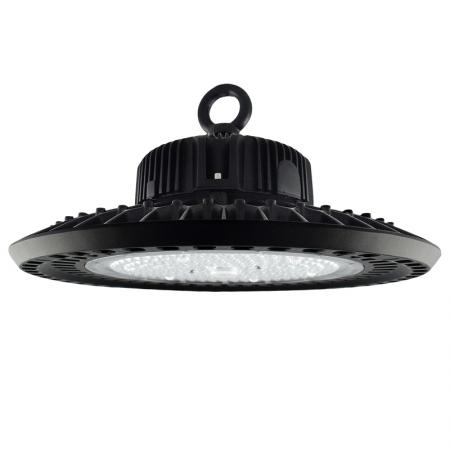

LED light UFO 150W / IP65 / 5000K / 1-10V - LU222/1

PD
Dimmable:
1-10V
Luminous flux (Lm):
22500
Power (W):
150
RP:
luminous flux (Lm):

22500

consumption (W):

150

dimming:

yes

sensor:

no

dimension (mm):

Ø340 x 130

light color (K):

5000

coverage:

IP65

degree of mechanical protection:

IK08

Producer: NEDES
Warranty: 60 months
Code: LU222/1
EAN: 8585040905567
Availability: in stock 0 PCS
€ 127.50 excl. VAT
€ 153.00 PCS
Watchdog Add to wishlist Share

Description Need advice?

ZH driver DIM 1-10V
HONGLI led
PF > 0,96

eye for hanging-in package





TECHNICAL PARAMETERS
consumption 150W
luminous flux 22500Lm
dimming yes (1-10V)
dimension (mm) Ø340 x 130
chromaticity (light color) 5000K - neutral white
angle of light 90°
voltage AC100 - 277V
lifespan 50 000h
swiching cycle 30 000 x
weight netto (g) 2730
coverage IP65
degree mechanical protection
 IK08
material metal - black
type of diffuser lens, 90°
packing 1/4
LED´s aren´t possible to change


Declaration of conformity

eu_declaration_of_conformity_nedes_-_lu2.pdf

Installation instruction

manual_of_ufo_series_lu2.pdf

Fotometric data

lu222_90_deg__ies.zip

Product sheet

product_sheet_lu222_1.pdf
