LED linear lightsLED linear IP40

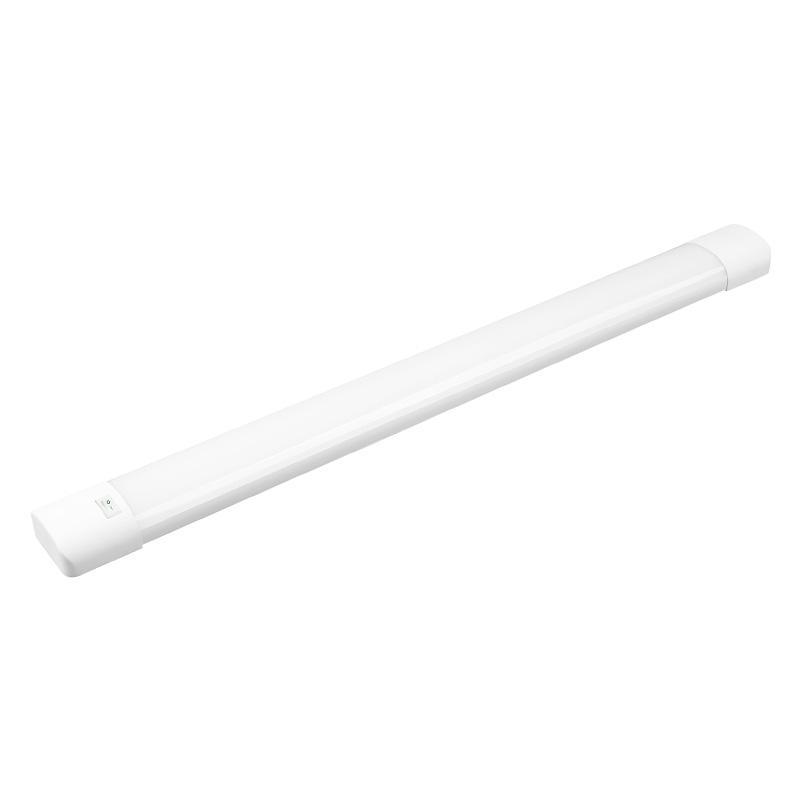

LED light 9W / IP40 WTL / 1 / 300 / 4000K - LNL121/1

PF
Light angle:
120
RP:
Luminous flux (Lm):
0-999
Installation type:
Wall-mounted
Dimension (mm):
≤500
Power (W):
≤10
Light source:
LED
Coverage:
IP40
Dimming:
No
Sensor:
No
Color rendering index:
Ra≥80
Producer: NEDES
Warranty: 36 months
Code: LNL121/1
EAN: 8585040902894
Availability: in stock more than 500 pcs
€ 9.35 excl. VAT
€ 11.50 pcs
Watchdog Add to wishlist Share

Description Need advice?
TECHNICAL PARAMETERS
consumption 9W
luminous flux 900Lm
coverage IP40
chromaticity (light color) 4000K - neutral white
degree of mechanical protection IK08
angle of light 120°
dimension (mm) 300 x 57 x 26
sensor -
possibly to connect -
power switch yes
voltage AC180 - 265V
lifespan 35 000h
swiching cycle 30 000 x
weight netto (g) 106
dimming no
material thermal PC
type of diffusor opal
packing 1/50
LED´s aren´t possible to change


Declaration of conformity

eu_declaration_of_conformity_lnl1__lnl7.pdf

Installation instruction

instruction_lnl121-1.pdf

Photometric data

lnl121-1_ies.zip

Product sheet

product_sheet_lnl121-1.pdf
