LightingLinear lights

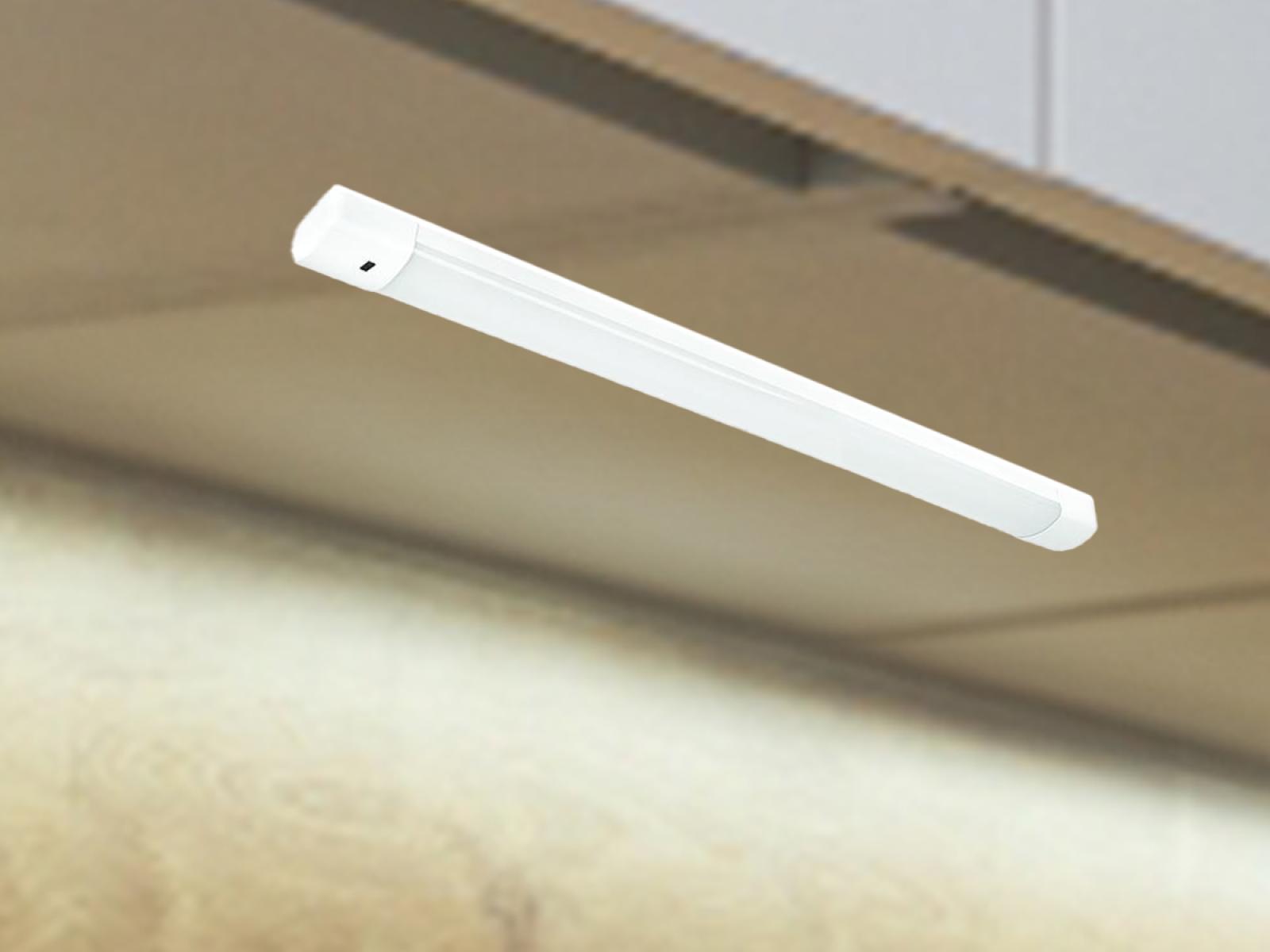

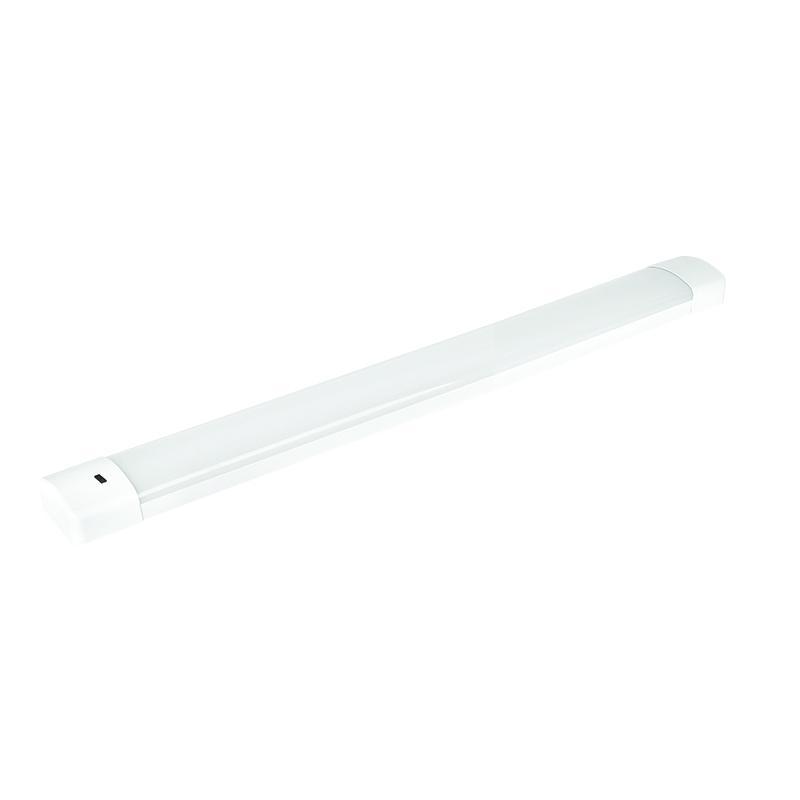

LED light 20W / IP40 WTL / 3 / 600 / 4000K - LNL122/3

Sensor PE
RF:
incl. in price
Luminous flux (Lm):
2000-2999
Installation type:
Wall-mounted
Dimension (mm):
501-699
Power (W):
11-20
Light source:
LED
Coverage:
IP40
Dimming:
Yes
Sensor:
Yes
Color rendering index:
Ra≥80
Producer: NEDES
Warranty: 36 months
Code: LNL122/3
EAN: 8585040906724
Availability: in stock 185 pcs
€ 19.35 excl. VAT
€ 23.80 pcs
Watchdog Add to wishlist Share

Description Need advice?
TECHNICAL PARAMETERS
consumption 20W
luminous flux 2200Lm
coverage IP40
chromaticity (light color) 4000K - neutral white
degree of mechanical protection IK08
angle of light 120°
dimension (mm) 600 x 80 x 36
sensor yes
possibly to connect -
power switch yes, contactless
voltage AC180 - 265V
lifespan 35 000h
swiching cycle 30 000 x
weight netto (g) 275
dimming yes
material thermal PC
type of diffusor opal
packing 1/25
LED´s aren´t possible to change


Declaration of conformity

eu_declaration_of_conformity_lnl1__lnl7.pdf

Installation instruction

manual_lnl122_3.pdf

Photometric data

lnl122_2_3_ies.zip
