LED linear lightsLED linear IP65

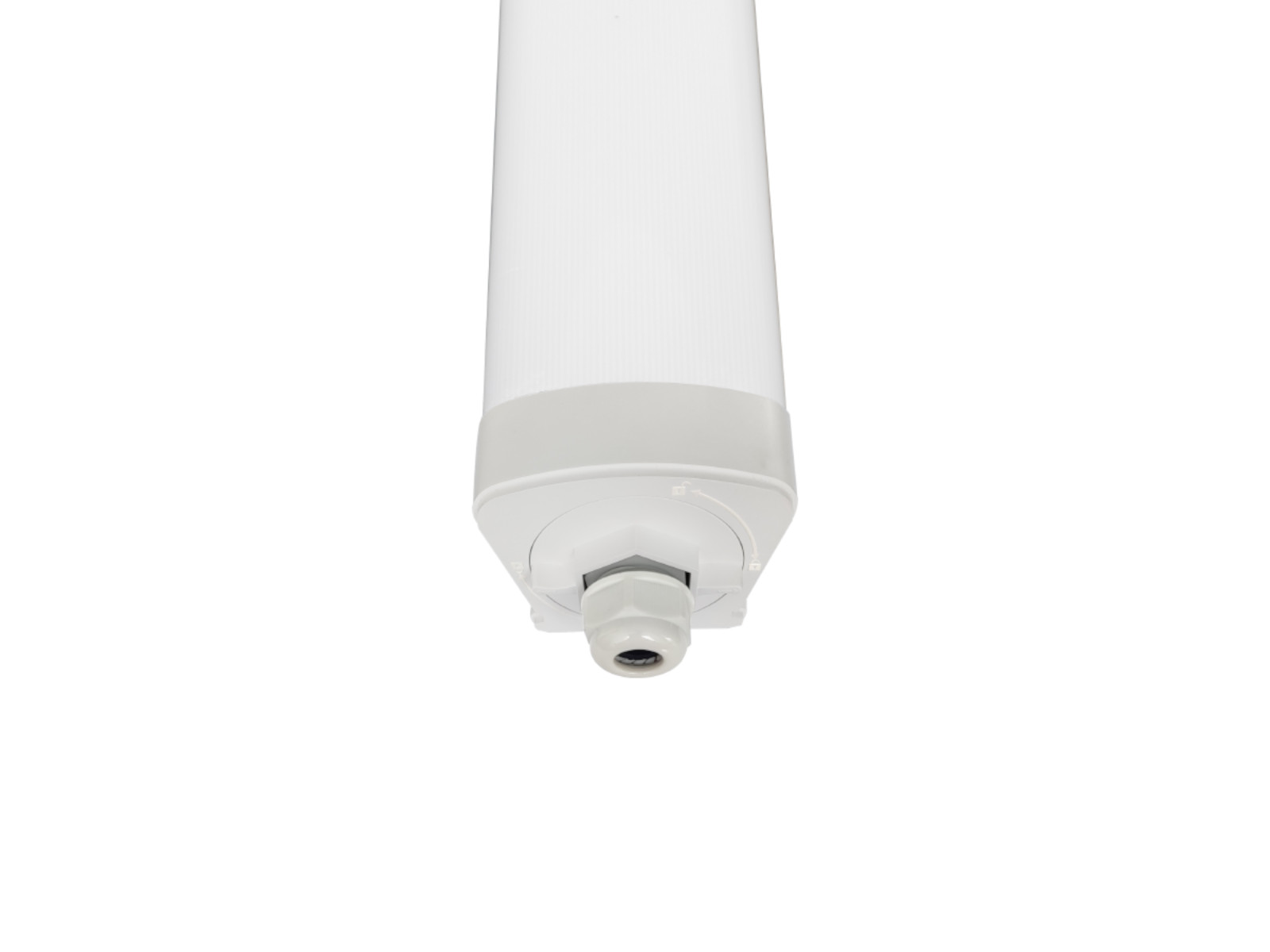

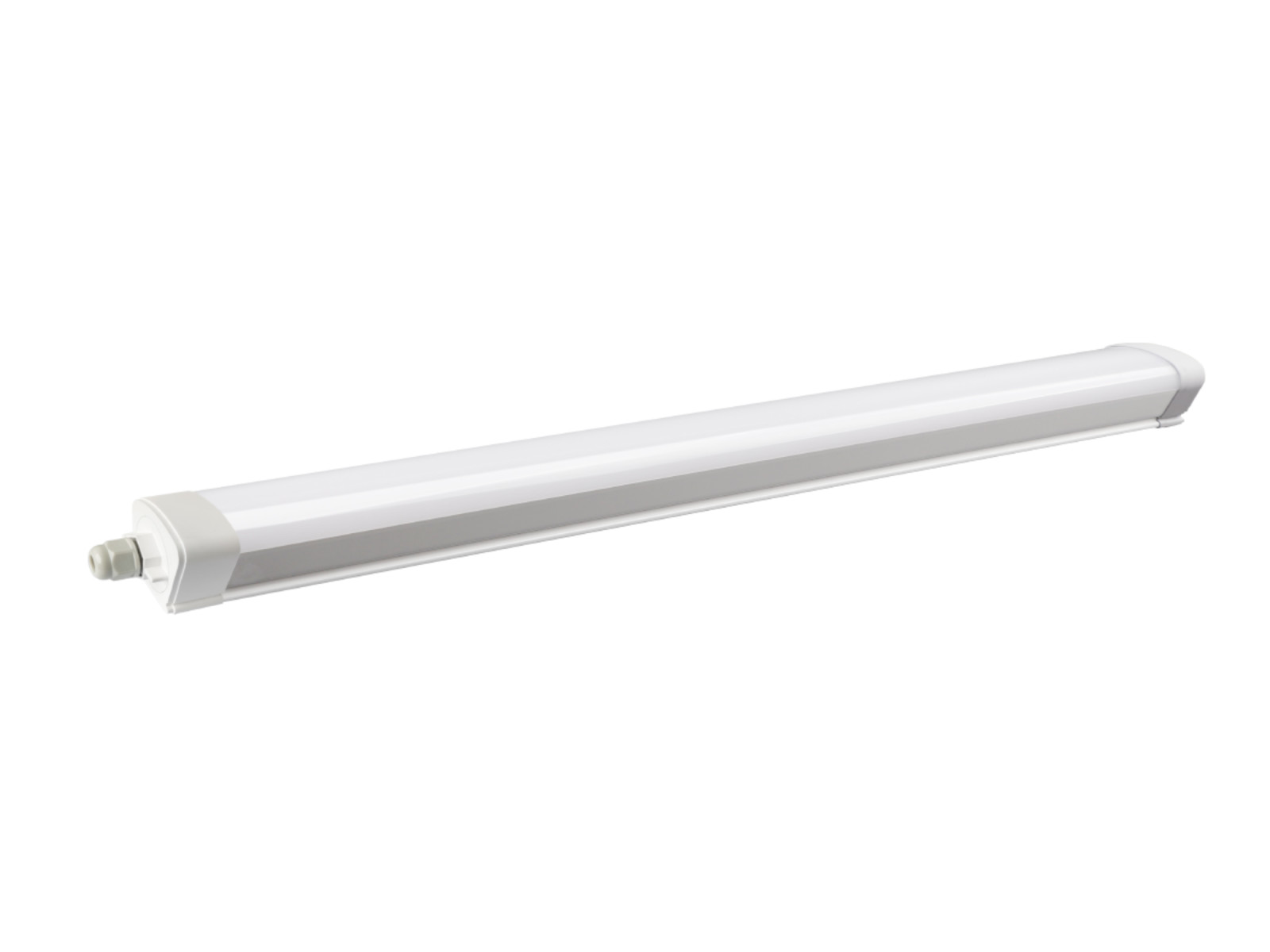

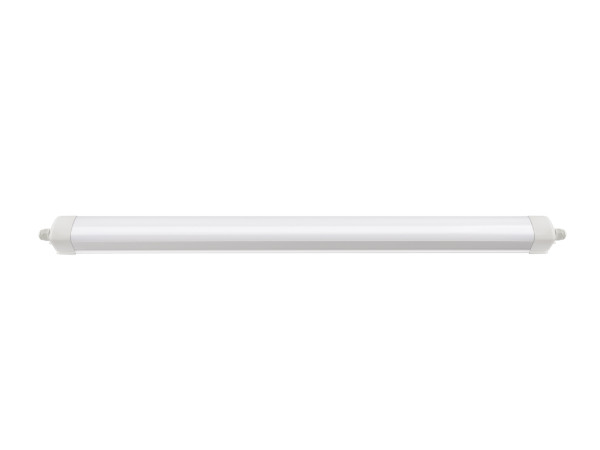

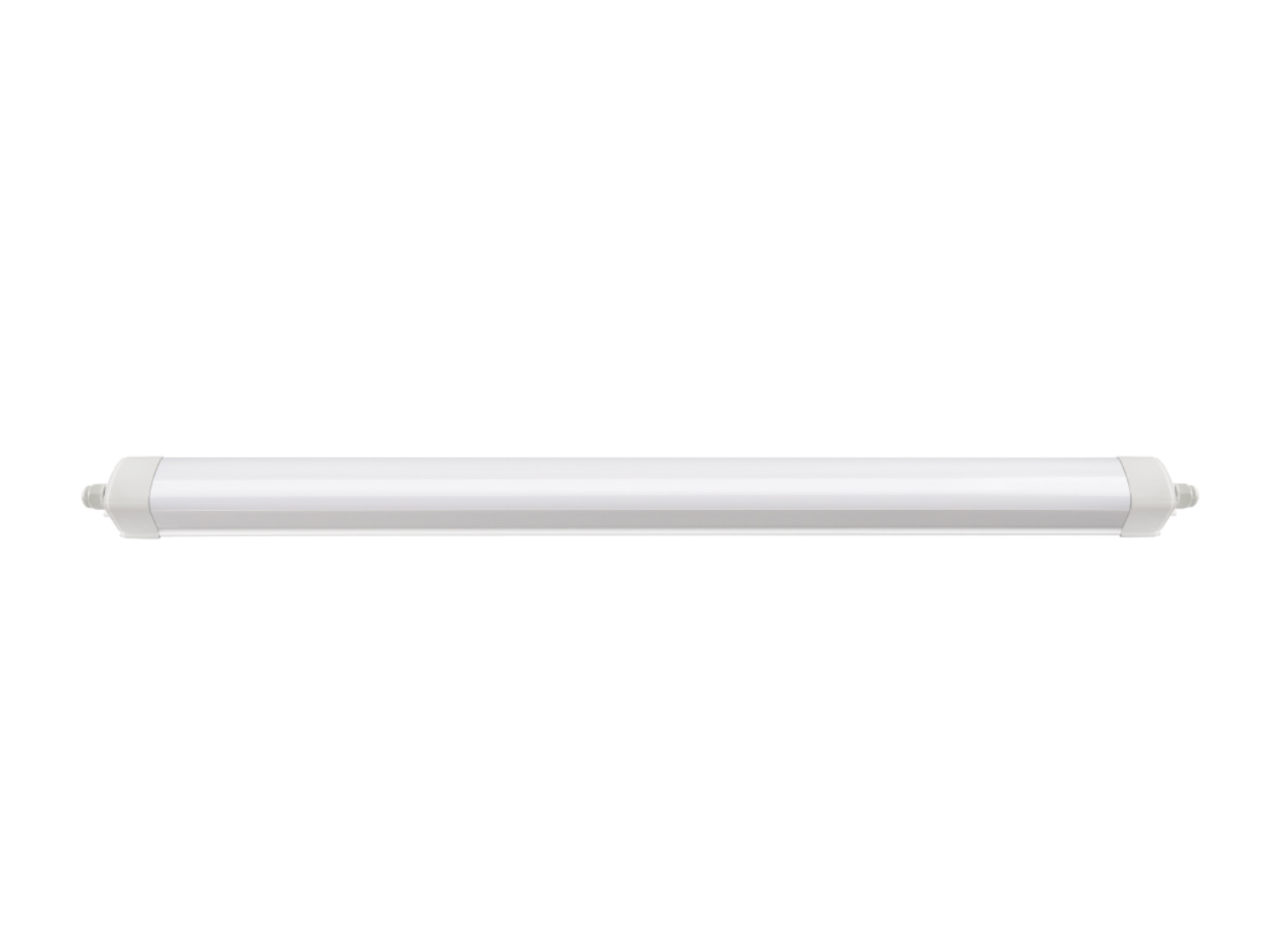

LED connecting light 50W / IP65 / 1500 / 4000K - LNL325/3

PE
Color:
white
Coverage:
IP65
Possibly to connect:
yes
Dimension (mm):
1500
Sensor:
no
Dimmable:
no
Luminous flux (Lm):
6000-6999
Power (W):
50
RP:
power (W):

50

luminous flux (Lm):

6500

size (mm):

1500 x 66 x 57

coverage:

IP65

degree of mechanical protection:

IK08

light color (K):

4000

power switch:

no

possibly to connect:

yes

Producer: NEDES
Warranty: 60 months
Code: LNL325/3
EAN: 8585040905406
Availability: in stock 214 pcs
€ 65.50 excl. VAT
€ 78.60 pcs
Watchdog Add to wishlist Share

Description Need advice?
TECHNICAL PARAMETERS
consumption 50W
luminous flux 6500Lm
coverage IP65
chromaticity (light color) 4000K - neutral white
degree of mechanical protection IK08
angle of light 120°
dimension (mm) 1500 x 66 x 57
sensor -
possibly to connect  yes (max.1000W)
power switch -
voltage AC180 - 265V
lifespan 50 000h
swiching cycle 30 000 x
weight netto (g) 1010
dimming no
material thermal PC
type of diffusor opal
packing 1/25
LED´s aren´t possible to change


Declaration of conformity

eu_declaration_of_conformity_lnl3.pdf

Installation instruction

manual_lnl324-3_lnl325-3.pdf

Photometric data

lnl325_3_ies.zip

Product sheet

product_sheet_lnl325-3.pdf
