LED linear lightsLED linear IP65

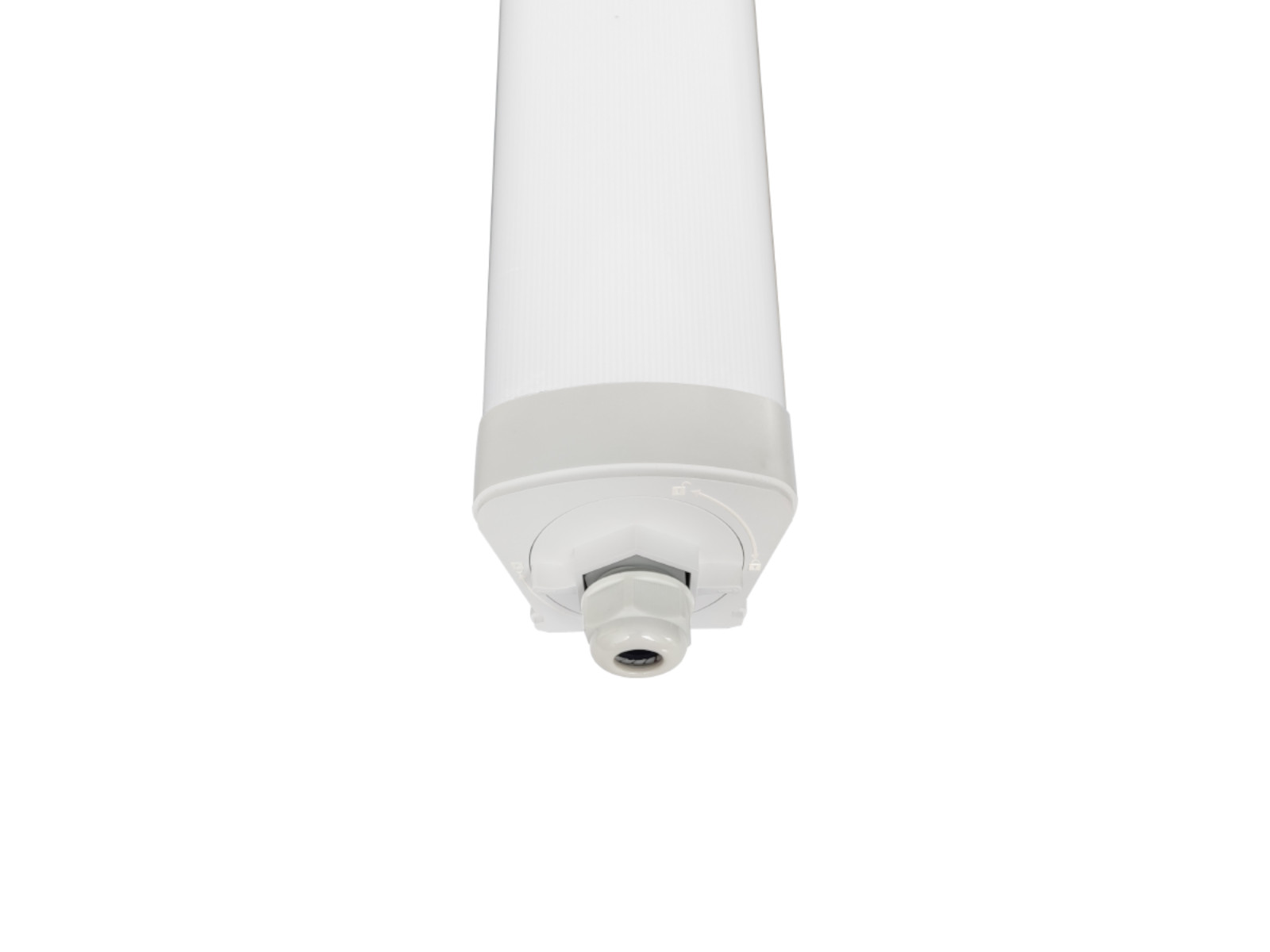

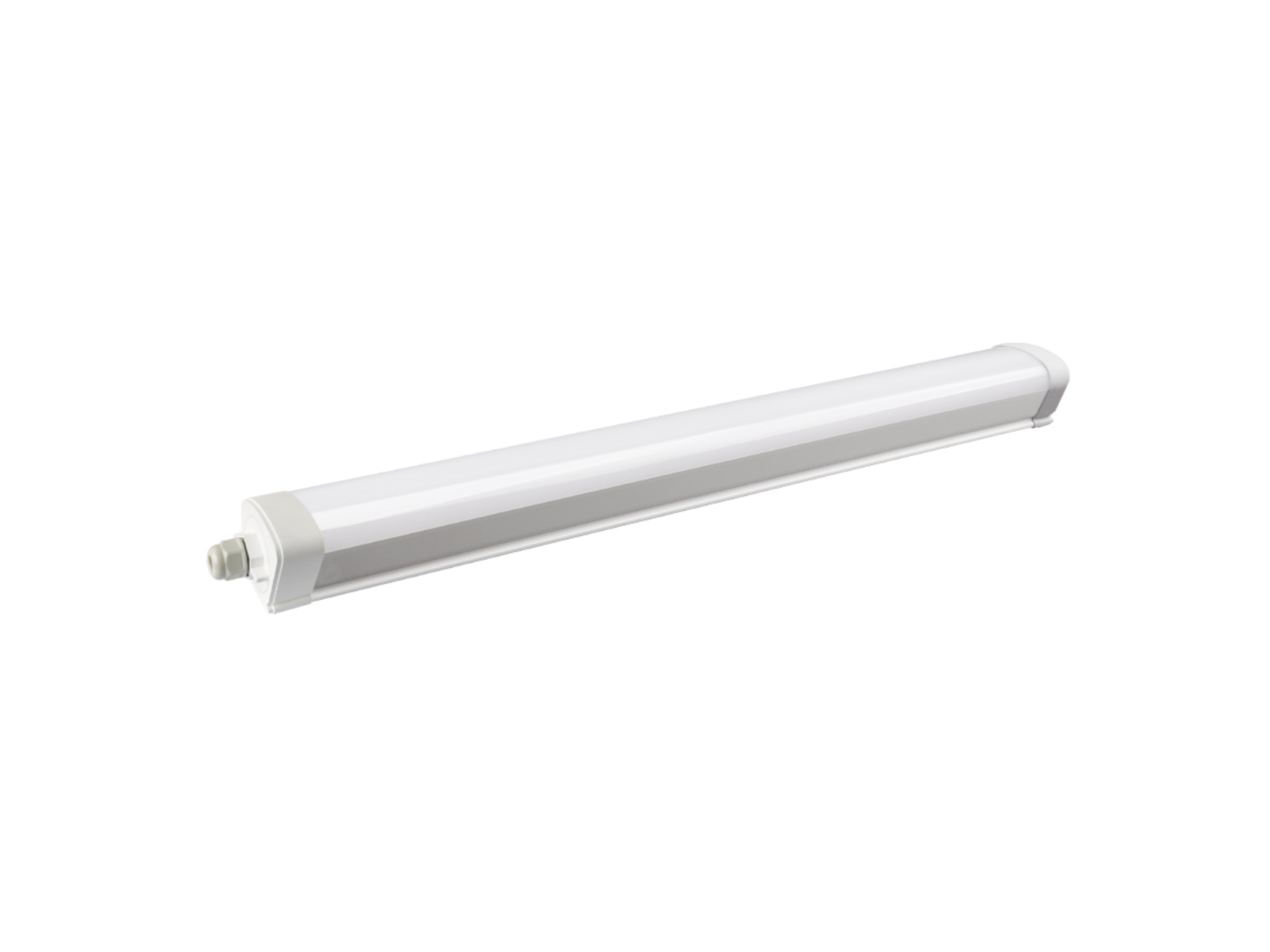

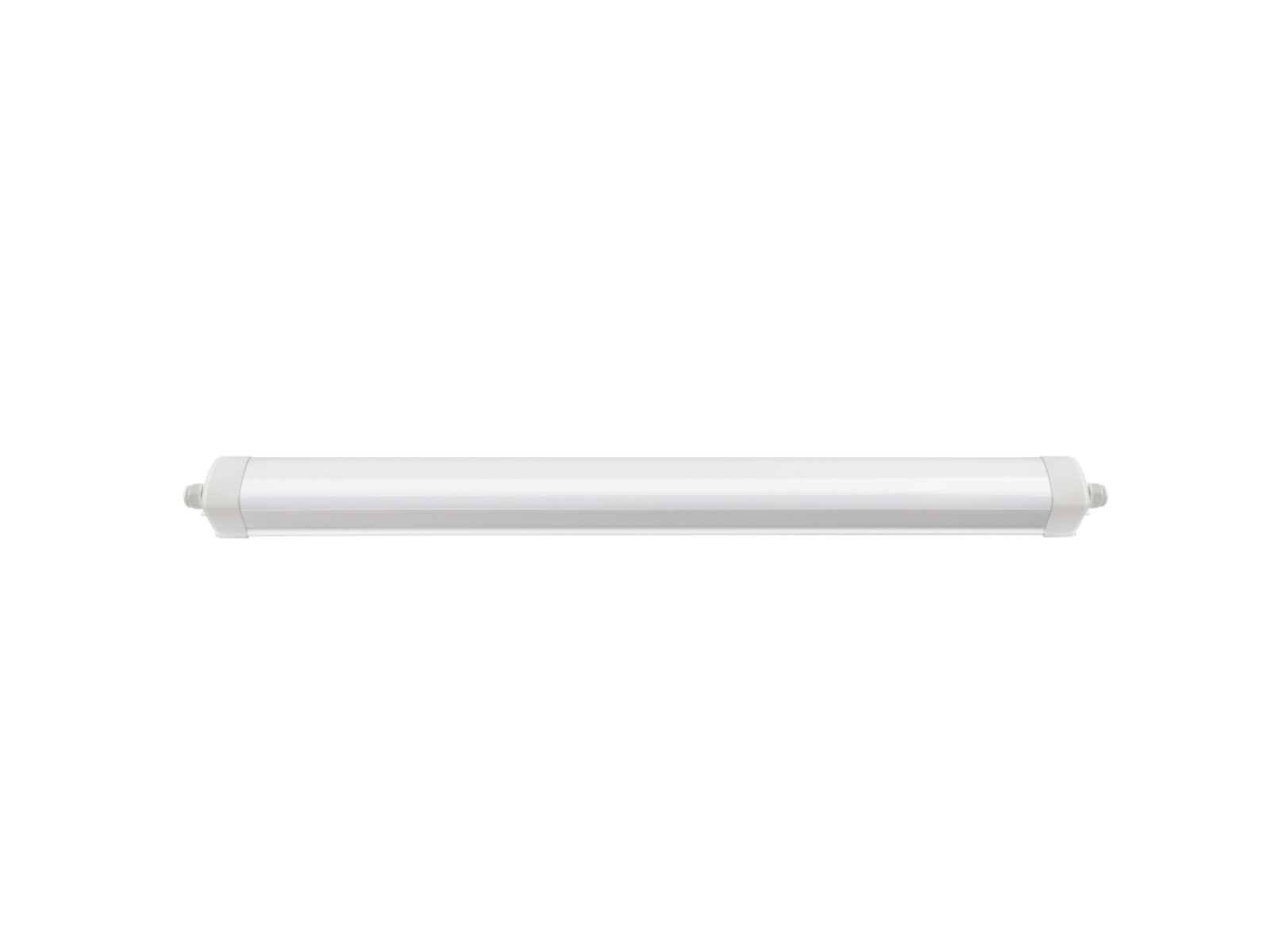

LED connecting light 40W / IP65 / 1200 / 2835 / 4000K - LNL324/3

PE
Color:
white
Coverage:
IP65
Possibly to connect:
yes
Dimension (mm):
1200
Sensor:
no
Dimmable:
no
Luminous flux (Lm):
5000-5999
Power (W):
40
RP:
power (W):

40

luminous flux (Lm):

5200

size (mm):

1200 x 66 x 57

coverage:

IP65

degree of mechanical protection:

IK08

light color (K):

4000

power switch:

no

possibly to connect:

yes

Producer: NEDES
Warranty: 60 months
Code: LNL324/3
EAN: 8585040904584
Availability: in stock
€ 49.67 excl. VAT
€ 59.60 PCS
Watchdog Add to wishlist Share

Description Need advice?
TECHNICAL PARAMETERS
consumption 40W
luminous flux 5200Lm
coverage IP65
chromaticity (light color) 4000K - neutral white
degree of mechanical protection IK08
angle of light 120°
dimension (mm) 1200 x 66 x 57
sensor -
possibly to connect yes (max.1000W)
power switch -
voltage AC180 - 265V
lifespan 50 000h
swiching cycle 30 000 x
weight netto (g) 828
dimming no
material thermal PC
type of diffusor opal
packing 1/25
LED´s aren´t possible to change


Declaration of conformity

eu_declaration_of_conformity_lnl3.pdf

Installation instruction

manual_lnl324-3.pdf

Photometric data

lnl324-3_ies.zip

Product sheet

product_sheet_lnl324-3.pdf
